CVM Deployment

Deploy your first TEE application on Phala Cloud using the web UI.

Make sure you have created your Phala Cloud account before continuing.

In this tutorial, you deploy a Jupyter Notebook inside a Confidential VM (CVM) on Phala Cloud and verify its TEE proof. By the end, you’ll have a running application with a public HTTPS endpoint secured by hardware-level encryption.

Prerequisites

• A Phala Cloud account
• Basic familiarity with Docker Compose

Step 1 — Open the Deploy Page

Navigate to your workspace and click the Deploy button in the top-right corner of the CVMs page.

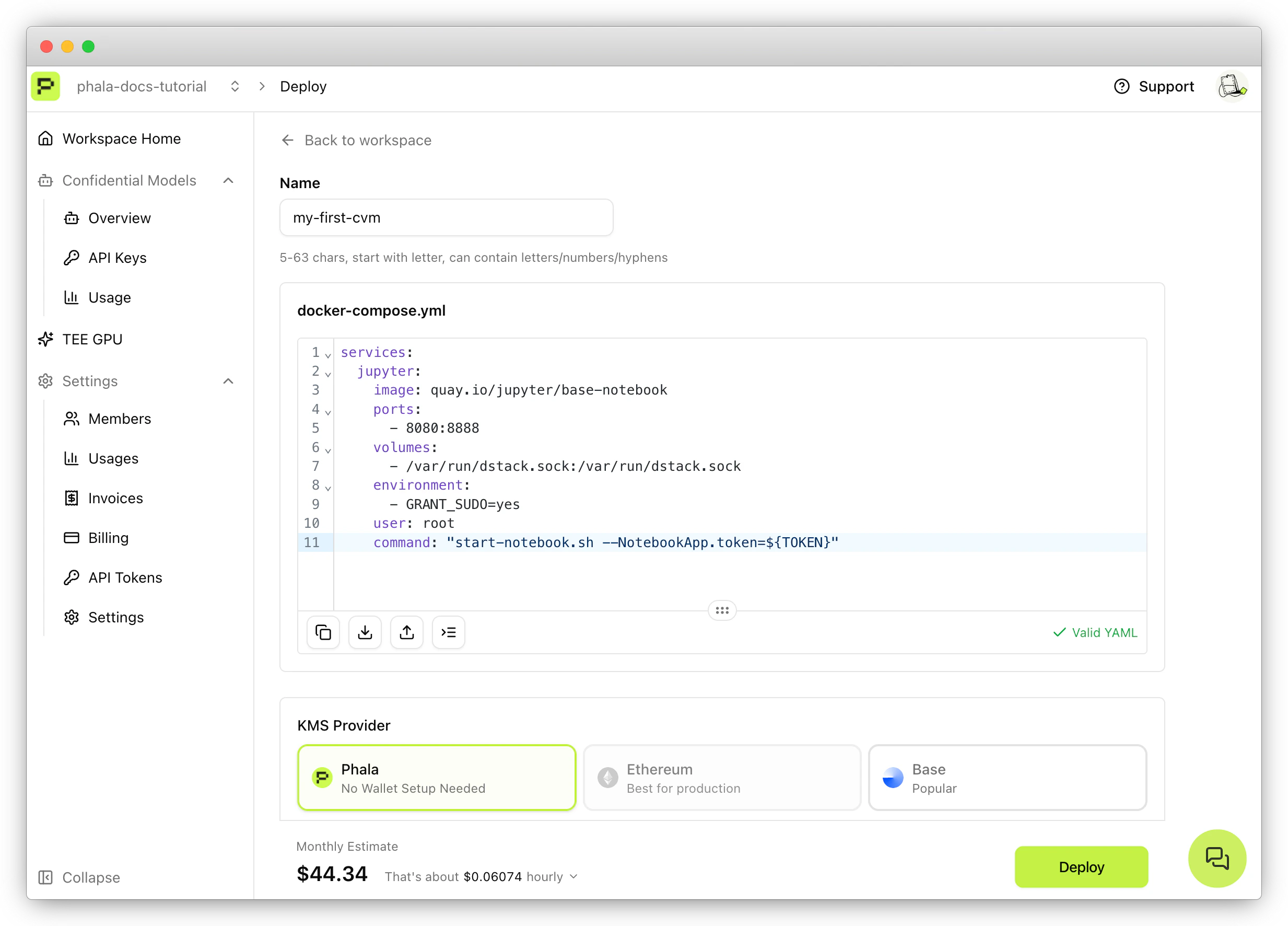

Step 2 — Configure Your CVM

On the Deploy page, fill in the following:

1. Name: Enter a name for your CVM (e.g., my-first-cvm).

2. docker-compose.yml: Replace the default content with the Jupyter Notebook configuration below:

   services:
     jupyter:
       image: quay.io/jupyter/base-notebook
       ports:
         - 8080:8888
       volumes:
         - /var/run/dstack.sock:/var/run/dstack.sock
       environment:
         - GRANT_SUDO=yes
       user: root
       command: "start-notebook.sh --NotebookApp.token=${TOKEN}"


3. KMS Provider: Select Phala (no wallet setup needed for testing).

4. Region: Choose a region closest to you (e.g., US West).

5. Instance Type: Keep the default CPU TEE with Small TDX Instance (1 vCPU, 2GB RAM).

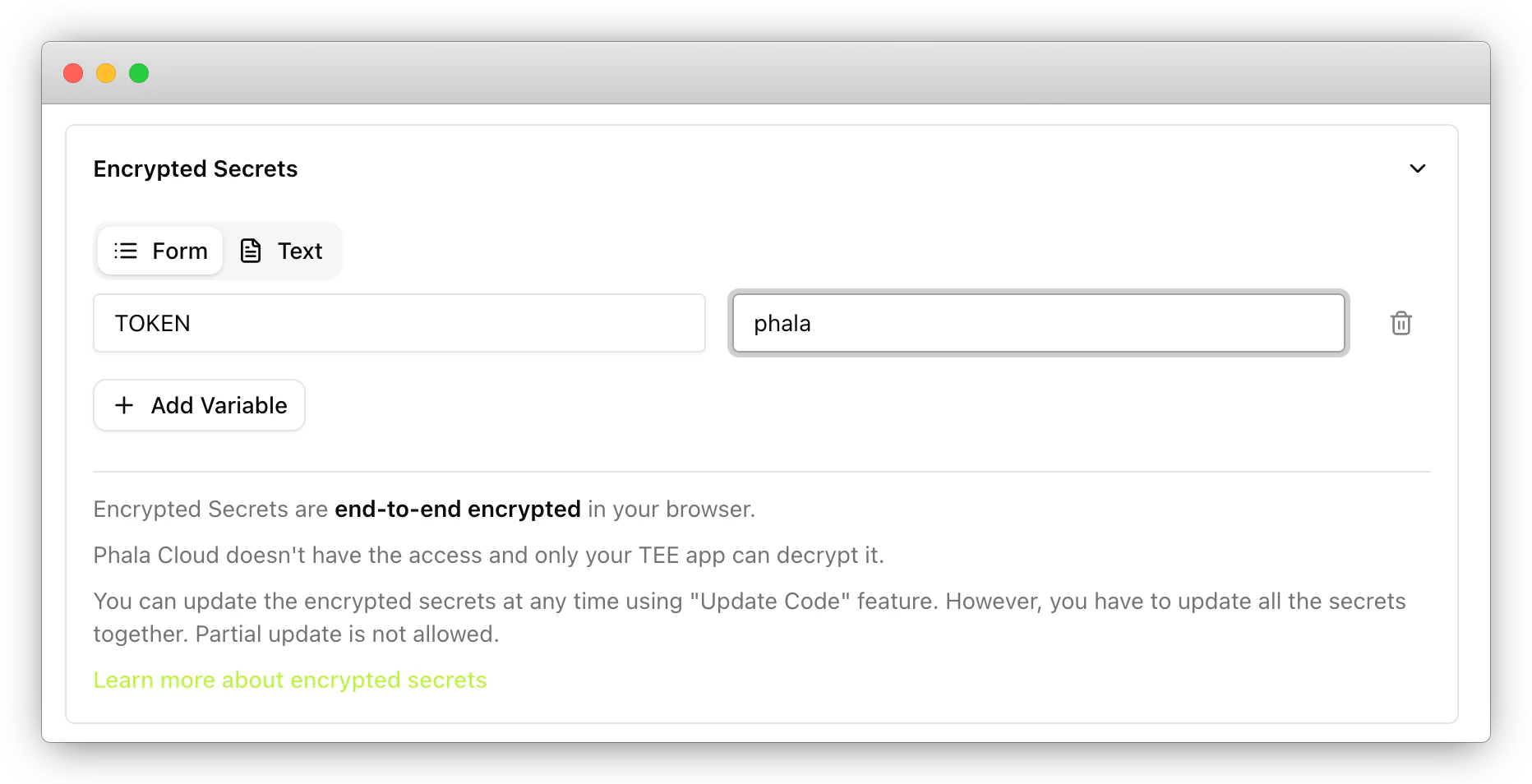

Step 3 — Set Encrypted Secrets

Scroll down and expand the Encrypted Secrets section. Add the following key-value pair:

Key	Value
TOKEN	phala

This sets the Jupyter Notebook login token. The TOKEN variable is referenced in the command field of the compose file as ${TOKEN}. Encrypted Secrets are end-to-end encrypted between you and your CVM.

Step 4 — Deploy

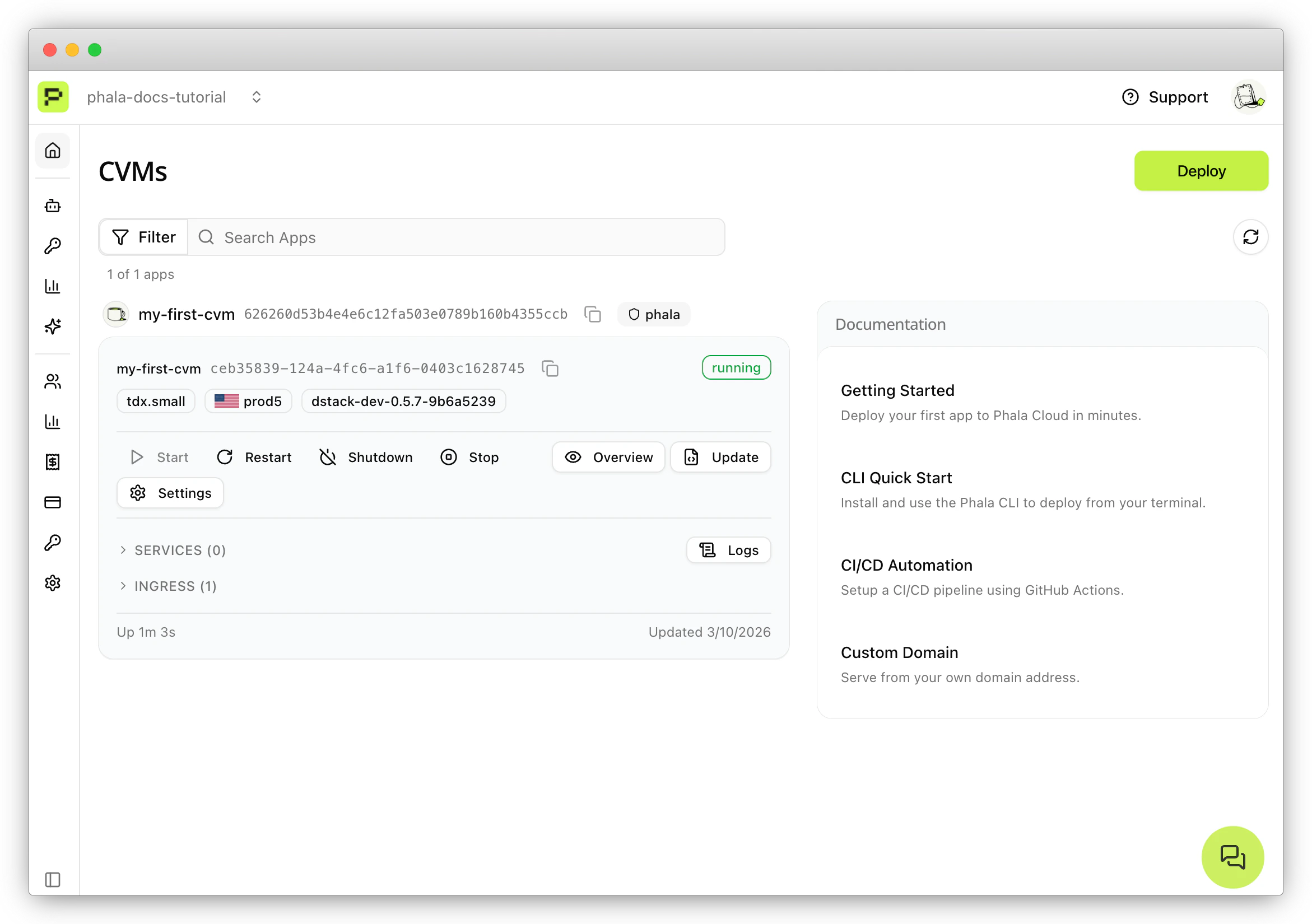

Click the Deploy button. You’ll be redirected to the CVMs page where your CVM will show a starting status. This typically takes 1–2 minutes. Once ready, the status changes to running.

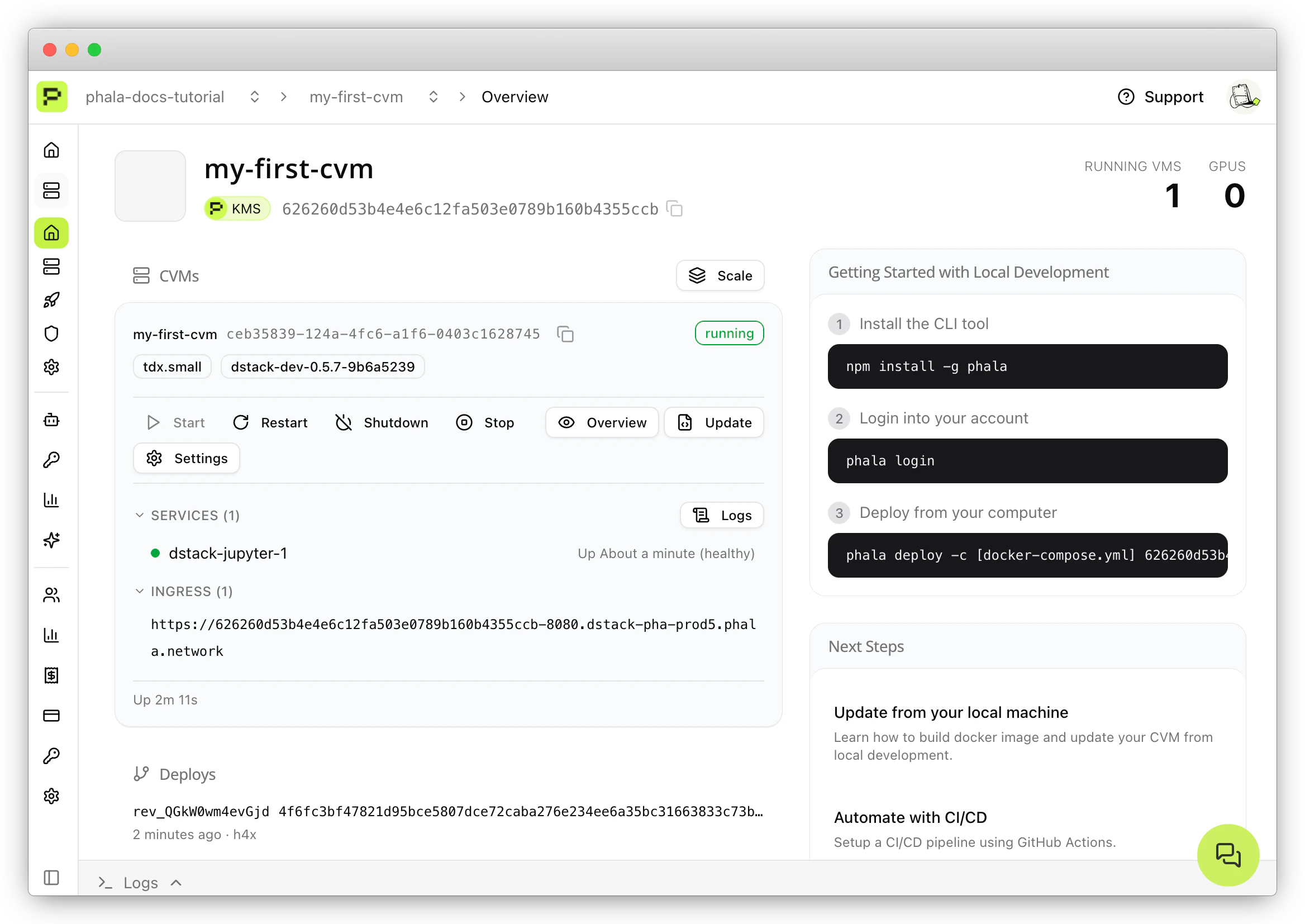

Step 5 — Access Your Application

Click Overview on the CVM card, then click Home in the sidebar. Expand the INGRESS section to find your application’s public endpoint URL.

The endpoint URL follows this pattern:

https://<app-id>-<port>.dstack-pha-<node>.phala.network

• App ID: Your CVM’s unique identifier
• Port: The external port mapped in your compose file (8080 in this example)
• Node: The infrastructure node running your CVM

Open the endpoint URL in your browser. You’ll see the Jupyter Notebook login page. Enter the token phala (the value you set in Encrypted Secrets) to access the notebook.

Step 6 — Verify TEE Proof

Navigate to Attestations in the sidebar to view the Remote Attestation report for your CVM. This report proves your application is running inside a genuine TEE.

Click Check Attestation to open the TEE Attestation Explorer, where you can verify the attestation quote. You can share this proof with anyone to demonstrate that your application runs in a secure, confidential environment.

For more details on attestation, see Get Attestation and Verify.

Attestation reports may take a few minutes to become available after deployment.

Next Steps

Now that you’ve deployed your first CVM, explore further:

• Create CVMs with Docker Compose — advanced configuration options
• Deploy from CLI — deploy and manage CVMs from your terminal
• Explore Templates — pre-built setups for common frameworks
• Security Architecture — understand how Phala Cloud protects your data
